Refurbished Gema OptiFlex Pro B Manual Powder Coating System
Full 1 year warranty on the complete system except for wear/consumable items.
Extended warranty available at $295 per year, up to a maximum of 5 years total.

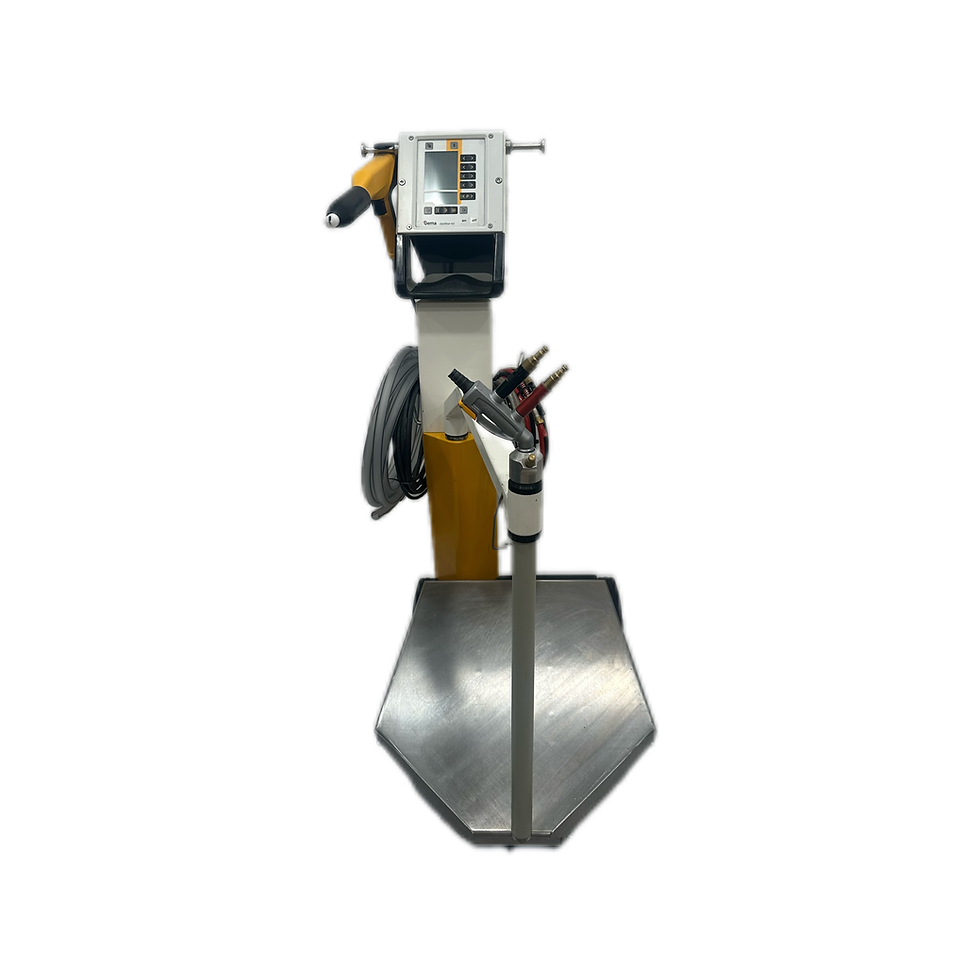

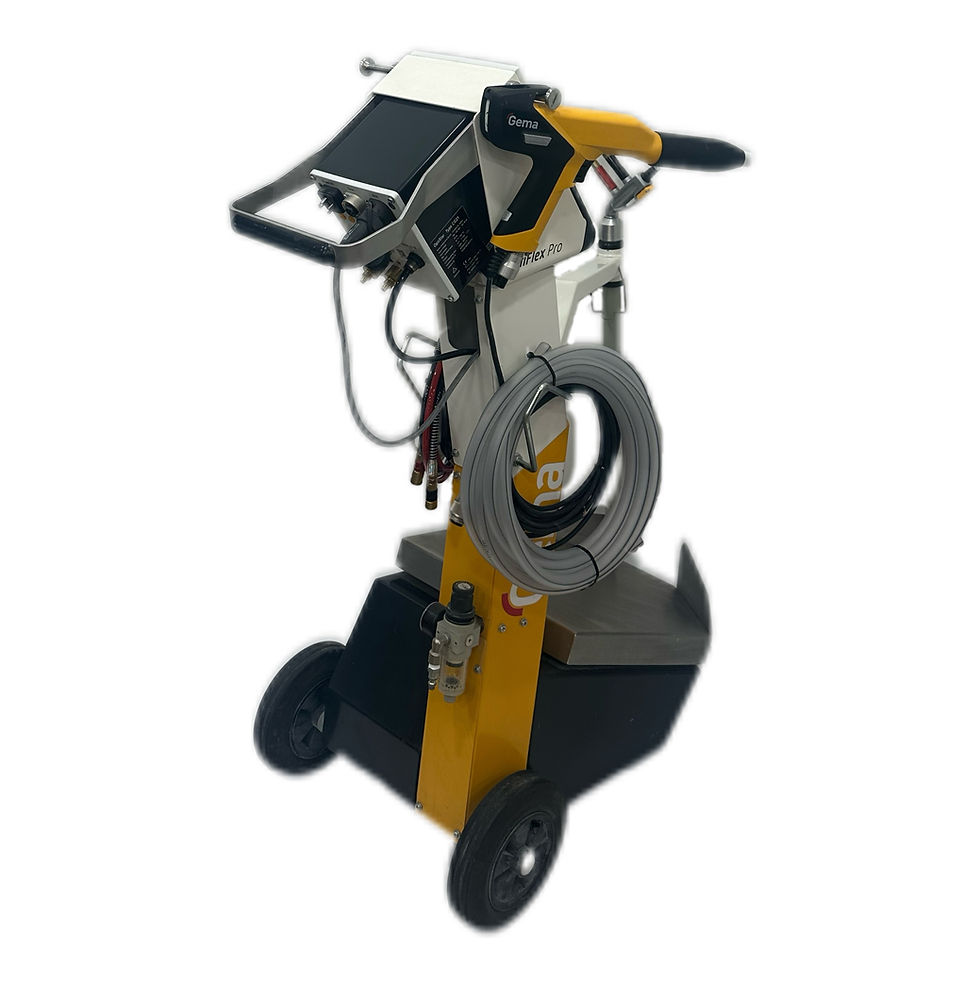

Boxfeed Configuration: The OptiFlex Pro B is a mobile, boxfeed system mounted on a rolling cart. You place your powder box directly onto the vibrating table, and the suction/pickup tube pulls draws powder straight from it and sprays. The vibrating table settles and funnels the powder while the fluidizing pikcup tube keeps it in a smooth, consistent state for even application. This setup allows for quick and easy color changes while keeping the whole system compact and mobile.
OptiStar CG21 Control Unit The control unit is the main "brains" of the system, ultimately controlling the high voltage and powder output. Here are a few notable features of the control unit:

LCD digital screen to allow easy setup and control of all powder coating parameters.
3 pre-programmed factory electrostatic application modes: flat parts, complicated/notched parts, and overcoat/recoat.
High voltage up to 110 kV and spray current up to 110 µA for high first-pass transfer efficiency.
20 custom programs/recipes (factory preset and fully adjustable) for individualized settings of high voltage, current, and powder delivery for a specific customer's parts.
High voltage control: 0-110,000 volts, adjustable to match the customer's specific part profiles/shapes.
Current control: 0-110 µA, adjustable to match the customer's specific part profiles/shapes.
Independent control of powder output (%), total air, electrode rinsing air, and fluidizing air, with all values saved to each program for accuracy and repeatability.

OptiSelect GM04 Manual Gun The manual gun is the handheld powder coating device used to apply the powder to parts. Here are a few notable features of the manual gun:
Lightweight, ergonomic design with a grounded handle for safe, all-day use.
Rinsing electrode air maintains constant low-pressure air at the tip of the electrode to eliminate any powder accumulation that reduces powder charging efficiency.
Compatible with a full range of deflector and flat jet nozzles to dial in the right powder cloud for the job.
Integrated gun tube that cleans easily with the supplied brush.
Quick connect for the powder hose allows fast, easy cleaning of the powder hose and gun.

OptiFlow IG07 Injector The injector is the venturi-style air pump used to suck up and spray the powder out of the gun. Here are a few notable features of the OptiFlow IG07 injector:
Quick-release cartridge design allows fast color changes and easy cleaning in seconds.
Separate conveying air and supplementary air check valve units for a soft, consistent powder cloud and precise output.
Powder hose quick-release connection for fast, easy cleaning.
Serviceable check valve units and replaceable filter elements to keep contaminants out of your powder and keep the injector rebuildable when needed.
The First In Finishing Promise:
Unlimited lifetime technical support via phone at (317) 483-3361 or email at Info@finf.us.
Parts availability: FINF stocks locally here in Indiana and supports all systems nationwide, providing same-day delivery and fast turnarounds.
First In Finishing offers personalized, hands-on training including operation, service, and maintenance of equipment.
