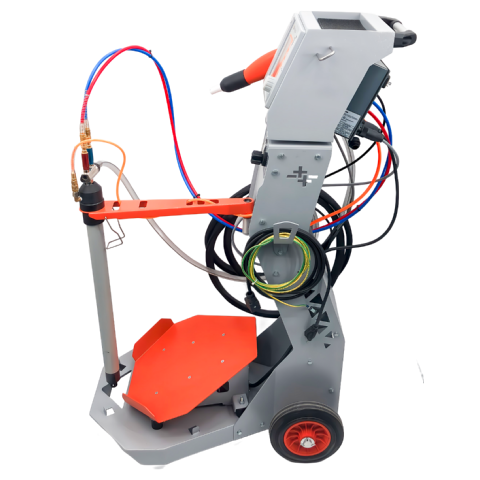

Electron V2 Master M
-Full 2 year warranty on the complete system except for wear/consumable items
-Extended warranty available at $295 per year, up to a maximum of 5 years total
Box Feed Configuration:
The Electron V2 Master M is a boxfeed-capable system. This means you place the powder, in the box you buy it in, directly on the system and spray straight out of it. This is to the angled vibrating table, which funnels the powder to a corner of the box, where the pickup tube then sucks it up and sprays it. This boxfeed setup allows for quick and easy color changes while being the most versatile system you can get.
Electron V2 Master Control unit
The control unit is the “brains” of the system, ultimately controlling the high voltage and powder output. Here are a few notable features of the control unit
-LCD digital screen to allow easy setup and control of all powder coating parameters.
-3 Pre-programmed factory electrostatic high voltage settings: flat/straight-faced parts, two-coat/recoat parts, and complicated/notched parts.
-50 custom programs/recipes (3 of 50 are pre-programmed) for individualized settings of high voltage, current, and powder delivery for a specific customer's parts.
-High voltage control: 10-100 Kv, adjustable to match the customers specific part profiles/shapes.
-Current Control: 2-100 µA, adjustable to match the customer's specific part profiles/shapes.
-Powder transfer air: 0-100%, and powder assist air: 0-6.6, adjustable via electro-pneumatic valve technology with internal closed-loop pressure control for accuracy and repeatability.
Electron V2 Manual Gun
The manual gun is a handheld powder coating device used to apply the powder to parts. Here are a few notable features of the manual gun:
-Fast Purge Mode enabled on the on-board remote control on the gun.
-Double-action trigger to switch between 2 preset programs/recipes.
-On-board remote control to change settings for powder transfer, assist air, high voltage, current control, and programs
-Rinsing Electrode air maintains constant low-pressure air at the tip of the electrode to eliminate any powder accumulation that reduces powder charging efficiency.
-7 m (23ft) of powder hose, rinsing line, and gun cable
-quick connect for the powder hose allows fast, easy cleaning of the powder hose and gun.
Electron V2 Powder Pump
The powder pump is the venturi-style air pump used to suck up and spray the powder out of the gun. Here are a few notable features of the Electron V2 powder pump:
-90-Degree angle pump
-1-piece pump insert
-Color-coded air lines prevent confusion about how the air should be connected to the pump
-Pump filters help prevent contaminants from getting into your powder and feature a duckbill design that blocks air from traveling the wrong way.
The First in Finishing Promise:
-Unlimited lifetime technical support via phone at (317)-483-3361 or email at info@finf.us
-Parts availability: FINF stocks locally here in Indiana and supports all systems nationwide, providing same-day delivery and fast turnarounds.
-First in Finishing offers personalized, Hands-on training including operation, service, and maintenance of equipment.
